Product Overview

令人驚艷的的消費性電子產品世界不斷經歷快速的變化。傳統的單機產品已漸
漸從娛樂設備、家用電器及照明設備中被淘汰。

Click to show

Thick Film Chip Resistors
Thick Film Chip Resistors High Ohmic Value Thick Film Resistors High-Power Thick Film Chip Resistors-HP Ultra High Power Thick Film Chip Resistors - SP High-Voltage Thick Film Chip Resistors - HV High-voltage anti-sulfurized thick film chip resistors-VS Anti-Surge Thick Film Chip Resistors - AS High-Precision Anti-Surge Thick Film Chip Resistors - PS Low T.C.R Thick Film Chip Resistors - LT Flex LED Strip use Thick Film Chip Resistors - LE Wide Terminal Thick Film Chip Resistors - WR Anti-Electro Static Discharge Thick Film Chip Resistors - ES Non-magnetic Thick Film Chip Resistors - NM Complete Pb-Free Thick Film Chip Resistors - PF Automotive Thick Film Chip Resistors - CQ Automotive High Power Thick Film Chip Resistors-HQ Automotive Low Resistance Thick Film Chip Resistors-CS Anti-Sulfurized Automotive Thick Film Chip Resistors - NQ High Quality Anti-Sulfurized Automotive Thick Film Chip Resistors - NS Anti-Sulfurized Thick Film Chip Resistors Array-Convex Terminal Chip Resistors Array Thick Film Chip Resistors Network Industrial Grade Thick Film Chip Resistors - CM
Thin Film Chip Resistors
High-Precision Thin Film Chip Resistors - TC
Alloy Resistors
Metal Foil Chip Resistors - MS Metal Foil Wide Terminal Current Sensing Chip Resistors - MW Metal Strip Chip Resistors-LR Metal Alloy Low Resistance Chip Resistors-ML Metal Film low-resistance Chip Resistors - TL Alloy Shunt Resistors - RA
Through Hole Resisitors
Film Resistors Wire-wound Resistors Special type &Forming process Resistors Traditional Cement Resistors Network Resistors
Power Resisitors

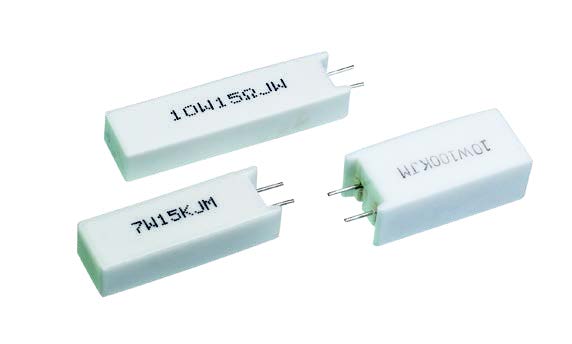

Radial Terminal Type Cement Fixed Resistors Terminal Type-With metal mounting bracket Lead Type Cement Fixed Resistors Power Dissipation Mount Fixed Resistors High Power Wire-wound Aluminum Case Resistors Power Alloy Wire-wound Resistors Metal Glaze Film Voltage Divider Resistors
Raw Material
Ceramic Rod Capped Ceramic Rod Carbon Film Capped Ceramic Rod Metal Film Capped Ceramic Rod Metal Oxide Film Capped Ceramic Rod Metal Glaze Capped Ceramic Rod Chemical Nickel - Plating Film Capped Ceramic Rod Zero ohm Copper Plated Rod Zero ohm-Tinned Iron Rod 0? Tin-Plated Steel Cap Ceramic Case
Customized inductor
Thermal Fuse Wire-wound Resistors-ASSY Type High Power Wire-wound Flat Aluminum Shell Fixed Resistors-HFWR Type Cement Thermal Fusible Resistors Vertical Type Shrapnel Fuse Resistors - PHF0 Type Array Type Cement Temperature Fusing Resistors - TFRC Type Columnar Type Cement Fixed Resistors-QHO Type Multi-Lead Wire-wound Fixed Resistors - KNHW Type High Power Flat Wire-wound Fixed Resistors - KNHB Type High Power Wire-wound Flat Aluminum Shell Fixed Resistors - HPWR High Power Wire-wound Iron Shell Fixed Resistors - HPWR Type High Power Wire-wound Iron-Case Resistors - HAWF Type High Power Wire-wound Aluminum Shell Resistance - HAWR Type High Power Wire-wound Aluminum Case Resistors High power Starting Resistors High Power,High Current Mica Grid Resistors - GRM0 Cemented Wire Wound Tubular Fixed Resistors - GRM1 High Power Wire -wound Iron Shell Fixed Resistors - HDWR Metal Plate Crowbar Resistors - MPCR

Show 677 Series results

If you need to download the specifications of related products, please click the box in front of your required specifications to be checked, please click the Download PDF button at the top of the form to download the complete specifications .
Download PDF

Series	Product Name	Power	Specifications	Temperature coefficient	Precision	Resistance segment	Specifications	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	25W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	25W	PRW	±400PPM/℃	±5%、±10%	2Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	20W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	20W	PRW	±400PPM/℃	±5%、±10%	2Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	15W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	15W	PRW	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	10W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	10W	PRW	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	7W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	7W	PRW	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	5W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	5W	PRW	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	3W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	3W	PRW	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	2W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤120KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	2W	PRW	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	1W	PRW	±350PPM/℃	±5%、±10%	20Ω＜R≤100KΩ	File size:462.86 KB	Details
PRW	Axial Leaded Type Cement Fixed Resistors-PRW Series	1W	PRW	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:462.86 KB	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	10W	PRWA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	10W	PRWA	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	7W	PRWA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	7W	PRWA	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	5W	PRWA	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	5W	PRWA	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	2W	PRWA	±350PPM/℃	±5%、±10%	20Ω＜R≤120KΩ	File size:n/a	Details
PRWA	Axial Leaded Type Cement Fixed Resistors-PRWA Series	2W	PRWA	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:n/a	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	7W	PRWC	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	7W	PRWC	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	5W	PRWC	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	5W	PRWC	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	3W	PRWC	±350PPM/℃	±5%、±10%	20Ω＜R≤120KΩ	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	3W	PRWC	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	2W	PRWC	±350PPM/℃	±5%、±10%	20Ω＜R≤33KΩ	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	2W	PRWC	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	1W	PRWC	±350PPM/℃	±5%、±10%	20Ω＜R≤33KΩ	File size:357.12 KB	Details
PRWC	Axial Leaded Type Cement Fixed Resistors-PRWC Series	1W	PRWC	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:357.12 KB	Details
PRWC-1	Axial Leaded Type Cement Fixed Resistors-PRWC-1 Series	6W	PRWC-1	±350PPM/℃	±5%、±10%	20Ω＜R≤100KΩ	File size:356 KB	Details
PRWC-1	Axial Leaded Type Cement Fixed Resistors-PRWC-1 Series	6W	PRWC-1	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:356 KB	Details
PRWC-1	Axial Leaded Type Cement Fixed Resistors-PRWC-1 Series	5W	PRWC-1	±350PPM/℃	±5%、±10%	20Ω＜R≤100KΩ	File size:356 KB	Details
PRWC-1	Axial Leaded Type Cement Fixed Resistors-PRWC-1 Series	5W	PRWC-1	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:356 KB	Details
PRWC-1	Axial Leaded Type Cement Fixed Resistors-PRWC-1 Series	4W	PRWC-1	±350PPM/℃	±5%、±10%	20Ω＜R≤100KΩ	File size:356 KB	Details
PRWC-1	Axial Leaded Type Cement Fixed Resistors-PRWC-1 Series	4W	PRWC-1	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:356 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CPR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CPR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CPR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CPR	±300	±2% ±5% ±10%	3Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CPR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CPR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CPR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CPR	±300	±2% ±5% ±10%	3Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CPR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CPR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CPR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CPR	±300	±2% ±5% ±10%	3Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	3W-S	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	3W-S	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	3W-S	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	3W-S	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W-S	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W-S	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W-S	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	2W-S	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W-S	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W-S	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W-S	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1W-S	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/2W	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W	CFR	0～+1500	±2% ±5% ±10%	1.1MΩ≤R≤10MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W-S	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W-S	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/4W-S	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/8W	CFR	0～+700	±2% ±5% ±10%	100KΩ≤R≤1MΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/8W	CFR	±450	±2% ±5% ±10%	11Ω≤R≤99KΩ	File size:679.69 KB	Details
CFR	Carbon Film Fixed Resistors	1/8W	CFR	±300	±2% ±5% ±10%	1Ω≤R≤10Ω	File size:679.69 KB	Details
PRWH	Cement Heating Fixed Resistors-PRW Series	3W	PRWH	±350PPM/℃	±5%、±10%	2.5KΩ~12KΩ	File size:416.11 KB	Details
PRWS	Cement Heating Fixed Resistors-PRW Series	3W	PRWS	±350PPM/℃	±5%、±10%	6.8KΩ~14KΩ	File size:477.66 KB	Details
PRWP	Cement Heating Fixed Resistors-PRW Series	3W	PRWP	±350PPM/℃	±5%、±10%	5.4KΩ~25KΩ	File size:374.83 KB	Details
PRWL	Cement Heating Fixed Resistors-PRW Series	3W	PRWL	±350PPM/℃	±5%、±10%	5.6KΩ~16KΩ	File size:468.67 KB	Details
PRWD	Cement Heating Fixed Resistors-PRW Series	3W	PRWD	±350PPM/℃	±5%、±10%	5.6KΩ~16KΩ	File size:364.11 KB	Details
CT	Copper Plated Steel Lead Wire Resistors-CP,CT	1/2W	CTO/CTL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CT	Copper Plated Steel Lead Wire Resistors-CP,CT	1/3W	CTO/CTL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CT	Copper Plated Steel Lead Wire Resistors-CP,CT	1/3WS	CTO/CTL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CT	Copper Plated Steel Lead Wire Resistors-CP,CT	1/4W	CTO/CTL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CT	Copper Plated Steel Lead Wire Resistors-CP,CT	1/8W	CTO/CTL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CP	Copper Plated Steel Lead Wire Resistors-CP,CT	1/2W	CPO/CPL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CP	Copper Plated Steel Lead Wire Resistors-CP,CT	1/3W	CPO/CPL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CP	Copper Plated Steel Lead Wire Resistors-CP,CT	1/3WS	CPO/CPL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CP	Copper Plated Steel Lead Wire Resistors-CP,CT	1/4W	CPO/CPL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CP	Copper Plated Steel Lead Wire Resistors-CP,CT	1/8W	CPO/CPL	±200ppm/℃	±2%、±5%、±10%	1Ω~10MΩ	File size:330.01 KB	Details
CSS	Current Sense Resistors	12A	CSSC	/	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	9.5A	CSSC	/	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	5.5A	CSSC	/	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	4.5A	CSSC	/	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	12A	CSSB	/	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	9.5A	CSSB	/	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	5.5A	CSSB	/	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	4.5A	CSSB	/	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	12A	CSSA	/	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	9.5A	CSSA	/	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	5.5A	CSSA	/	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSS	Current Sense Resistors	4.5A	CSSA	/	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	50A	CSRE	±100	±5% ±10%	1mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	14A	CSRJ	±100	±5% ±10%	3mΩ≤R≤7mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	12A	CSRJ	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	11A	CSRJ	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.5A	CSRJ	±100	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.0A	CSRJ	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	8.0A	CSRJ	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.5A	CSRJ	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.0A	CSRJ	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	6.0A	CSRJ	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.5A	CSRJ	±100	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.0A	CSRJ	±100	±5% ±10%	5mΩ≤R≤40mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	4.5A	CSRJ	±100	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	14A	CSRD	±100	±5% ±10%	3mΩ≤R≤7mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	12A	CSRD	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	11A	CSRD	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.5A	CSRD	±100	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.0A	CSRD	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	8.0A	CSRD	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.5A	CSRD	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.0A	CSRD	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	6.0A	CSRD	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.5A	CSRD	±100	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.0A	CSRD	±100	±5% ±10%	5mΩ≤R≤40mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	4.5A	CSRD	±100	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	14A	CSRC	±100	±5% ±10%	3mΩ≤R≤7mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	12A	CSRC	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	11A	CSRC	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.5A	CSRC	±100	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.0A	CSRC	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	8.0A	CSRC	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.5A	CSRC	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.0A	CSRC	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	6.0A	CSRC	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.5A	CSRC	±100	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.0A	CSRC	±100	±5% ±10%	5mΩ≤R≤40mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	4.5A	CSRC	±100	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	14A	CSRB	±100	±5% ±10%	3mΩ≤R≤7mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	12A	CSRB	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	11A	CSRB	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.5A	CSRB	±100	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.0A	CSRB	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	8.0A	CSRB	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.5A	CSRB	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.0A	CSRB	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	6.0A	CSRB	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.5A	CSRB	±100	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.0A	CSRB	±100	±5% ±10%	5mΩ≤R≤40mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	4.5A	CSRB	±100	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	14A	CSRA	±100	±5% ±10%	3mΩ≤R≤7mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	12A	CSRA	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	11A	CSRA	±100	±5% ±10%	3mΩ≤R≤10mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.5A	CSRA	±100	±5% ±10%	3mΩ≤R≤15mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	9.0A	CSRA	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	8.0A	CSRA	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.5A	CSRA	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	7.0A	CSRA	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	6.0A	CSRA	±100	±5% ±10%	3mΩ≤R≤20mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.5A	CSRA	±100	±5% ±10%	3mΩ≤R≤30mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	5.0A	CSRA	±100	±5% ±10%	5mΩ≤R≤40mΩ	File size:466.62 KB	Details
CSR	Current Sense Resistors	4.5A	CSRA	±100	±5% ±10%	5mΩ≤R≤50mΩ	File size:466.62 KB	Details
CMO	Cutting Semi-Finished Product	/	7×51	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	7×51	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	7×28	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	7×28	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	7×23	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	7×23	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	6.4×22	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	6.4×22	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	4×39	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	4×39	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	4×28	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	4×28	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product		4×14	0~-700 PPM/℃	±5%	150KΩ＜R≤200KΩ	File size:322.04 KB	Details
CMO	Cutting Semi-Finished Product	/	4×14	±350PPM/℃	±5%	3.3Ω≤R≤150KΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	3×8	0~-1500 PPM/℃	±5%	1MΩ＜R≤10MΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	3×8	0~-700 PPM/℃	±5%	100KΩ≤R≤1MΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	3×8	±450 PPM/℃	±5%	10Ω＜R＜100KΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	3×8	±300 PPM/℃	±5%	1Ω≤R≤10Ω	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.7×6.0	0~-1500 PPM/℃	±5%	1MΩ＜R≤10MΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.7×6.0	0~-700 PPM/℃	±5%	100KΩ≤R≤1MΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.7×6.0	±450 PPM/℃	±5%	10Ω＜R＜100KΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.7×6.0	±300 PPM/℃	±5%	1Ω≤R≤10Ω	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.3×2.7	0~-1500 PPM/℃	±5%	1MΩ＜R≤10MΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.3×2.7	0~-700 PPM/℃	±5%	100KΩ≤R≤1MΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.3×2.7	±450 PPM/℃	±5%	10Ω＜R＜100KΩ	File size:322.04 KB	Details
COT/CON	Cutting Semi-Finished Product	/	1.3×2.7	±300 PPM/℃	±5%	1Ω≤R≤10Ω	File size:322.04 KB	Details
FRN	Fusible Resistors	3W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	2W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	1.5W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	1W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	3/4W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	1/2W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	0.4W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	1/2W-S	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
FRN	Fusible Resistors	1/4W	FRN	±350	±2% ±5% ±10%	0.22Ω≤R≤10KΩ	File size:481.19 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	7W	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	7W	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤47Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	5W	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	5W	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	3W	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	3W	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	3W-S	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	3W-S	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	2W	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	2W	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	2W-S	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	2W-S	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	1W	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	1W	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	1W-S	KNPU	±400	±2% ±5% ±10%	0.47Ω≤R＜20Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	1W-S	KNPU	±300	±2% ±5% ±10%	20Ω≤R≤240Ω	File size:400.86 KB	Details
KNPU	Fusible Wire-Wound Fixed Resistor	1W-SS	KNPU	±300	±2% ±5% ±10%	10Ω	File size:400.86 KB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	5WS	FWRA	±400PPM/℃	±5%	20Ω＜R≤1KΩ	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	5WS	FWRA	±400PPM/℃	±5%	10Ω≤R≤20Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	3W	FWRA	±400PPM/℃	±5%	20Ω＜R≤470Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	3W	FWRA	±400PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	2W,3WS	FWRA	±350PPM/℃	±5%	20Ω＜R≤470Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	2W,3WS	FWRA	±350PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	1W,2WS	FWRA	±400PPM/℃	±5%	20Ω＜R≤470Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	1W,2WS	FWRA	±350PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	1WS	FWRA	±400PPM/℃	±5%	20Ω＜R≤470Ω	File size:2.05 MB	Details
FWRA	Fusible Wire-Wound Fixed Resistors	1WS	FWRA	±350PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:2.05 MB	Details
FWR	Fusible Wire-Wound Fixed Resistors	3W	FWR	±400PPM/℃	±5%	20Ω＜R≤470Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	3W	FWR	±400PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	2W,3WS	FWR	±350PPM/℃	±5%	20Ω＜R≤470Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	2W,3WS	FWR	±350PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	1W,2WS	FWR	±400PPM/℃	±5%	20Ω＜R≤470Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	1W,2WS	FWR	±350PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	1WS	FWR	±400PPM/℃	±5%	20Ω＜R≤470Ω	File size:476.2 KB	Details
FWR	Fusible Wire-Wound Fixed Resistors	1WS	FWR	±350PPM/℃	±5%	0.47Ω≤R≤20Ω	File size:476.2 KB	Details
KNPU	Heat-Shrinkable Tube Wrapped Forming Type	1WSS~3WS	KNPU				File size:2.13 MB	Details
KNP	Heat-Shrinkable Tube Wrapped Forming Type	1/4W~3WS	KNP				File size:2.13 MB	Details
PRMS	High Surge Radial Type Cement Fixed Resistors	10W	PRMS	±350ppm/℃	±5%、±10%	20Ω≤R≤2KΩ	File size:430.96 KB	Details
PRMS	High Surge Radial Type Cement Fixed Resistors	10W	PRMS	±400ppm/℃	±5%、±10%	2.7Ω≤R＜20Ω	File size:430.96 KB	Details
PRMS	High Surge Radial Type Cement Fixed Resistors	7W	PRMS	±350ppm/℃	±5%、±10%	20Ω≤R≤2KΩ	File size:430.96 KB	Details
PRMS	High Surge Radial Type Cement Fixed Resistors	7W	PRMS	±400ppm/℃	±5%、±10%	1.8Ω≤R＜20Ω	File size:430.96 KB	Details
PRMS	High Surge Radial Type Cement Fixed Resistors	5W	PRMS	±350ppm/℃	±5%、±10%	20Ω≤R≤2KΩ	File size:430.96 KB	Details
PRMS	High Surge Radial Type Cement Fixed Resistors	5W	PRMS	±400ppm/℃	±5%、±10%	1.5Ω≤R＜20Ω	File size:430.96 KB	Details
HFR	High Voltage Flat Resistors	1W	HFR	±200	±5% ±10% ±20%	1MΩ≤R≤1GΩ	File size:311.28 KB	Details
HFR	High Voltage Flat Resistors	3/4W	HFR	±200	±5% ±10% ±20%	1MΩ≤R≤1GΩ	File size:311.28 KB	Details
HFR	High Voltage Flat Resistors	1/2W	HFR	±200	±5% ±10% ±20%	1MΩ≤R≤1GΩ	File size:311.28 KB	Details
MGRN	High Voltage Non Inductive Resistance	10W	MGRN	±200ppm/℃	±2%、±5%、±10%	1MΩ~500MΩ	File size:410.63 KB	Details
MGRN	High Voltage Non Inductive Resistance	8W	MGRN	±200ppm/℃	±2%、±5%、±10%	1MΩ~500MΩ	File size:410.63 KB	Details
ZW	Jumper Wires Resistors		ZWE			0Ω	File size:245.44 KB	Details
ZW	Jumper Wires Resistors		ZWD			0Ω	File size:245.44 KB	Details
ZW	Jumper Wires Resistors		ZWC			0Ω	File size:245.44 KB	Details
ZW	Jumper Wires Resistors		ZWB1			0Ω	File size:245.44 KB	Details
ZW	Jumper Wires Resistors		ZWB			0Ω	File size:245.44 KB	Details
ZW	Jumper Wires Resistors		ZWA			0Ω	File size:245.44 KB	Details
M & F & T Forming Type	M & F & T Forming Type		KNP				File size:1.18 MB	Details
M & F & T Forming Type	M & F & T Forming Type		MGR				File size:1.18 MB	Details
M & F & T Forming Type	M & F & T Forming Type		MOR				File size:1.18 MB	Details
M & F & T Forming Type	M & F & T Forming Type		MF				File size:1.18 MB	Details
M & F & T Forming Type	M & F & T Forming Type		CFR				File size:1.18 MB	Details
MGR	Metal Glaze Film Fixed Resistors	3W-S	MGR	±200	±5% ±10%	1KΩ≤R≤33MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	3W-S	MGR	±200	±1%	100KΩ≤R≤1MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	3W-SS	MGR	±200	±5% ±10%	1KΩ≤R≤33MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	3W-SS	MGR	±200	±1%	100KΩ≤R≤1MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	2W-S	MGR	±200	±5% ±10%	1KΩ≤R≤33MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	2W-S	MGR	±200	±1%	100KΩ≤R≤1MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1W-S	MGR	±200	±5% ±10%	1KΩ≤R≤33MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1W-S	MGR	±200	±1%	100KΩ≤R≤1MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/2W-S	MGR	±200	±5% ±10%	1KΩ≤R≤33MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/2W-S	MGR	±200	±1%	100KΩ≤R≤1MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	3W	MGR	±200	±1%	100KΩ≤R≤1MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	3W	MGR	±200	±5% ±10%	1KΩ≤R≤100MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	2W	MGR	±200	±2%	10MΩ＜R≤100MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	2W	MGR	±200	±1%	1KΩ≤R≤10MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	2W	MGR	±200	±5% ±10%	1KΩ≤R≤1GΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1W	MGR	±200	±2%	10MΩ＜R≤100MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1W	MGR	±200	±1%	1KΩ≤R≤10MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1W	MGR	±200	±5% ±10%	1KΩ≤R≤1GΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/2W	MGR	±200	±2%	10MΩ＜R≤100MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/2W	MGR	±200	±1%	1KΩ≤R≤10MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/2W	MGR	±200	±5% ±10%	1KΩ≤R≤510MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/4W	MGR	±200	±2%	10MΩ＜R≤100MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/4W	MGR	±200	±1%	1KΩ≤R≤10MΩ	File size:n/a	Details
MGR	Metal Glaze Film Fixed Resistors	1/4W	MGR	±200	±5% ±10%	1KΩ≤R≤510MΩ	File size:n/a	Details
RC06	Metal Glazed Film Fixed Resistors	1/4W	RC06	±200PPM/℃	±1%	11Ω~100Ω	File size:433.35 KB	Details
RC06	Metal Glazed Film Fixed Resistors	1/4W	RC06	±400PPM/℃	±1%	10Ω	File size:433.35 KB	Details
RC06	Metal Glazed Film Fixed Resistors	/	RC06	/	±1%、±5%	0Ω	File size:433.35 KB	Details
RC06	Metal Glazed Film Fixed Resistors	1/4W	RC06	±200PPM/℃	±5%	11Ω~100Ω	File size:433.35 KB	Details
RC06	Metal Glazed Film Fixed Resistors	1/4W	RC06	±400PPM/℃	±5%	1Ω~10Ω	File size:433.35 KB	Details
RC06-1	Metal Glazed Film Fixed Resistors	1/4W	RC06-1	±200PPM/℃	±1%	11Ω~100Ω	File size:430.29 KB	Details
RC06-1	Metal Glazed Film Fixed Resistors	1/4W	RC06-1	±400PPM/℃	±1%	10Ω	File size:430.29 KB	Details
RC06-1	Metal Glazed Film Fixed Resistors	/	RC06-1	/	±1%、±5%	0Ω	File size:430.29 KB	Details
RC06-1	Metal Glazed Film Fixed Resistors	1/4W	RC06-1	±200PPM/℃	±5%	11Ω~100Ω	File size:430.29 KB	Details
RC06-1	Metal Glazed Film Fixed Resistors	1/4W	RC06-1	±400PPM/℃	±5%	1Ω~10Ω	File size:430.29 KB	Details
MOR	Metal Oxide Film Fixed Resistors	9W	MOR	±350	±2% ±5% ±10%	50Ω＜R≤200KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	8W	MOR	±350	±2% ±5% ±10%	30Ω＜R≤200KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	7W	MOR	±350	±2% ±5% ±10%	20Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	5W	MOR	-700~0	±2% ±5% ±10%	180KΩ＜R≤680KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	5W	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤180KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	5W-S	MOR	-700~0	±2% ±5% ±10%	150KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	5W-S	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	3W	MOR	-700~0	±2% ±5% ±10%	150KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	3W	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	3W-S	MOR	-700~0	±2% ±5% ±10%	150KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	3W-S	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	2W	MOR	-700~0	±2% ±5% ±10%	150KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	2W	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	2W-S	MOR	-700~0	±2% ±5% ±10%	150KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	2W-S	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1W	MOR	-700~0	±2% ±5% ±10%	150KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1W	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤150KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1W-S	MOR	-700~0	±2% ±5% ±10%	120KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1W-S	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤120KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1/2W	MOR	-700~0	±2% ±5% ±10%	120KΩ＜R≤560KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1/2W	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤120KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1/2W-S	MOR	-700~0	±2% ±5% ±10%	100KΩ＜R≤470KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1/2W-S	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤100KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1/4W	MOR	-700~0	±2% ±5% ±10%	100KΩ＜R≤470KΩ	File size:634.69 KB	Details
MOR	Metal Oxide Film Fixed Resistors	1/4W	MOR	±350	±2% ±5% ±10%	0.1Ω＜R≤100KΩ	File size:634.69 KB	Details
PFAP	Power Flat Alloy Resistors-PFAP Series(Single circuit-P Type）	10W	PFAP	±350PPM/℃	±5%、±10%	0.01Ω~3.3Ω	File size:300.79 KB	Details
PFAP	Power Flat Alloy Resistors-PFAP Series(Single circuit-P Type）	5W	PFAP	±350PPM/℃	±5%、±10%	0.01Ω~1Ω	File size:300.79 KB	Details
PFAP	Power Flat Alloy Resistors-PFAP Series(Single circuit-P Type）	3W	PFAP	±350PPM/℃	±5%、±10%	0.01Ω~1Ω	File size:300.79 KB	Details
PFAP	Power Flat Alloy Resistors-PFAP Series(Single circuit-P Type）	2W	PFAP	±350PPM/℃	±5%、±10%	0.01Ω~1Ω	File size:300.79 KB	Details
PFAS	Power Flat Alloy Resistors-PFAS Series(單電路-S型）	10W	PFAS	±350PPM/℃	±5%、±10%	0.01Ω~3.3Ω	File size:313.39 KB	Details
PFAS	Power Flat Alloy Resistors-PFAS Series(單電路-S型）	5W	PFAS	±350PPM/℃	±5%、±10%	0.01Ω~1Ω	File size:313.39 KB	Details
PFAS	Power Flat Alloy Resistors-PFAS Series(單電路-S型）	3W	PFAS	±350PPM/℃	±5%、±10%	0.01Ω~1Ω	File size:313.39 KB	Details
PFAS	Power Flat Alloy Resistors-PFAS Series(單電路-S型）	2W	PFAS	±350PPM/℃	±5%、±10%	0.01Ω~1Ω	File size:313.39 KB	Details
PFAT	Power Flat Alloy Resistors-PFAT Series(Twin circuit-S Type）	7W	PFAT	±350PPM/℃	±5%、±10%	0.1Ω~1Ω	File size:306.34 KB	Details
PFAT	Power Flat Alloy Resistors-PFAT Series(Twin circuit-S Type）	5W	PFAT	±350PPM/℃	±5%、±10%	0.05Ω~1Ω	File size:306.34 KB	Details
PFAT	Power Flat Alloy Resistors-PFAT Series(Twin circuit-S Type）	3W	PFAT	±350PPM/℃	±5%、±10%	0.05Ω~1Ω	File size:306.34 KB	Details
PFAT	Power Flat Alloy Resistors-PFAT Series(Twin circuit-S Type）	2W	PFAT	±350PPM/℃	±5%、±10%	0.05Ω~1Ω	File size:306.34 KB	Details
PMR	Power Metal Fixed Resistors	3W-S	PMR	±400	±2% ±5%	101KΩ≤R≤180KΩ	File size:525.48 KB	Details
PMR	Power Metal Fixed Resistors	3W-S	PMR	±350	±2% ±5%	12Ω≤R≤100KΩ	File size:525.48 KB	Details
PMR	Power Metal Fixed Resistors	2W-S	PMR	±400	±2% ±5%	101KΩ≤R≤680KΩ	File size:525.48 KB	Details
PMR	Power Metal Fixed Resistors	2W-S	PMR	±350	±2% ±5%	3.9Ω≤R≤100KΩ	File size:525.48 KB	Details
PMR	Power Metal Fixed Resistors	1W-S	PMR	±800	±2% ±5%	471KΩ≤R≤1MΩ	File size:525.48 KB	Details
PMR	Power Metal Fixed Resistors	1W-S	PMR	±400	±2% ±5%	101KΩ≤R≤470KΩ	File size:525.48 KB	Details
PMR	Power Metal Fixed Resistors	1W-S	PMR	±350	±2% ±5%	0.56Ω≤R≤100KΩ	File size:525.48 KB	Details
MF	Precision Metal Film Fixed Resistors	3W	MF	±50	±0.5%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W-S	MF	±50	±0.5%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W-S	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W-S	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W	MF	±50	±0.5%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W-S	MF	±50	±0.5%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W-S	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W-S	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W	MF	±50	±0.5%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W	MF	±100	±2%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W	MF	±50	±1%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W-S	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W-S	MF	±100	±2%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	3W-S	MF	±50	±1%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W	MF	±100	±2%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W	MF	±50	±1%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W-S	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W-S	MF	±100	±2%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	2W-S	MF	±50	±1%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W	MF	±100	±2%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W	MF	±50	±1%	51.1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W-S	MF	±50	±0.5%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W-S	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W-S	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W	MF	±50	±0.5%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W	MF	±25	±0.25%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W	MF	±15	±0.1%	100Ω≤R≤330KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W-S	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W-S	MF	±100	±2%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1W-S	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W	MF	±100	±2%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.6W-S	MF	±50	±0.5%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.6W-S	MF	±25	±0.25%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.6W-S	MF	±15	±0.1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W-S	MF	±50	±0.5%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W-S	MF	±25	±0.25%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W-S	MF	±15	±0.1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W	MF	±50	±0.5%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W	MF	±25	±0.25%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W	MF	±15	±0.1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.6W-S	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.6W-S	MF	±100	±2%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.6W-S	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W-S	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W-S	MF	±100	±2%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/2W-S	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W	MF	±100	±2%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.4W-SS	MF	±50	±0.5%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.4W-SS	MF	±25	±0.5%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.4W-SS	MF	±15	±0.25%	51.1Ω≤R≤200KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W-S	MF	±50	±0.5%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W-S	MF	±25	±0.5%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W-S	MF	±15	±0.25%	51.1Ω≤R≤200KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/8W	MF	±50	±0.5%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/8W	MF	±25	±0.5%	51.1Ω≤R≤511KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/8W	MF	±15	±0.25%	51.1Ω≤R≤200KΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.4W-SS	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.4W-SS	MF	±100	±2%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	0.4W-SS	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W-S	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W-S	MF	±100	±2%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/4W-S	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/8W	MF	±200	±5%	1Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/8W	MF	±100	±2%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
MF	Precision Metal Film Fixed Resistors	1/8W	MF	±50	±1%	10Ω≤R≤1MΩ	File size:753.67 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	50W	PRT	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	50W	PRT	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	40W	PRT	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	40W	PRT	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	30W	PRT	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	30W	PRT	±400PPM/℃	±5%、±10%	3Ω≤R≤20Ω	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	20W	PRT	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	20W	PRT	±400PPM/℃	±5%、±10%	2Ω≤R≤20Ω	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	15W	PRT	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	15W	PRT	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	10W	PRT	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:352.93 KB	Details
PRT	Radial Terminal Type Cement Fixed Resistors-PRT Series	10W	PRT	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:352.93 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	50W	PRTA	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	50W	PRTA	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	40W	PRTA	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	40W	PRTA	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	30W	PRTA	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	30W	PRTA	±400PPM/℃	±5%、±10%	3Ω≤R≤20Ω	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	20W	PRTA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	20W	PRTA	±400PPM/℃	±5%、±10%	2Ω≤R≤20Ω	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	15W	PRTA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	15W	PRTA	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	10W	PRTA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:373.23 KB	Details
PRTA	Radial Terminal Type Cement Fixed Resistors-PRTA Series	10W	PRTA	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:373.23 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	50W	PRU	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	50W	PRU	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	40W	PRU	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	40W	PRU	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	30W	PRU	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	30W	PRU	±400PPM/℃	±5%、±10%	3Ω≤R≤20Ω	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	20W	PRU	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	20W	PRU	±400PPM/℃	±5%、±10%	2Ω≤R≤20Ω	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	15W	PRU	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	15W	PRU	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	10W	PRU	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:394.61 KB	Details
PRU	Radial Terminal Type Cement Fixed Resistors-PRU Series	10W	PRU	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:394.61 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	50W	PRUA	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	50W	PRUA	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	40W	PRUA	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	40W	PRUA	±400PPM/℃	±5%、±10%	6Ω≤R≤20Ω	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	30W	PRUA	±350PPM/℃	±5%、±10%	20Ω＜R≤1.5KΩ	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	30W	PRUA	±400PPM/℃	±5%、±10%	3Ω≤R≤20Ω	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	20W	PRUA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	20W	PRUA	±400PPM/℃	±5%、±10%	2Ω≤R≤20Ω	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	15W	PRUA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	15W	PRUA	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	10W	PRUA	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:351.5 KB	Details
PRUA	Radial Terminal Type Cement Fixed Resistors-PRUA Series	10W	PRUA	±400PPM/℃	±5%、±10%	1Ω≤R≤20Ω	File size:351.5 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	10W	PRM	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	10W	PRM	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	7W	PRM	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	7W	PRM	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	5W	PRM	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	5W	PRM	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	3W	PRM	±350PPM/℃	±5%、±10%	20Ω＜R≤150KΩ	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	3W	PRM	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	2W	PRM	±350PPM/℃	±5%、±10%	20Ω＜R≤120KΩ	File size:370.94 KB	Details
PRM	Radial Type Cement Fixed Resistors-PRM Series	2W	PRM	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:370.94 KB	Details
PRMA	Radial Type Cement Fixed Resistors-PRMA Series	10W	PRMA	±350PPM/℃	±5%、±10%	20Ω＜R≤100KΩ	File size:358.52 KB	Details
PRMA	Radial Type Cement Fixed Resistors-PRMA Series	10W	PRMA	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:358.52 KB	Details
PRMA	Radial Type Cement Fixed Resistors-PRMA Series	5W	PRMA	±350PPM/℃	±5%、±10%	20Ω＜R≤100KΩ	File size:358.52 KB	Details
PRMA	Radial Type Cement Fixed Resistors-PRMA Series	5W	PRMA	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:358.52 KB	Details
PRMB	Radial Type Cement Fixed Resistors-PRMB Series	7W	PRMB	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:376.75 KB	Details
PRMB	Radial Type Cement Fixed Resistors-PRMB Series	7W	PRMB	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:376.75 KB	Details
PRMT	Radial Type Cement Fixed Resistors-PRMT Series	20W	PRMT	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:450.24 KB	Details
PRMT	Radial Type Cement Fixed Resistors-PRMT Series	20W	PRMT	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:450.24 KB	Details
PRMT	Radial Type Cement Fixed Resistors-PRMT Series	15W	PRMT	±350PPM/℃	±5%、±10%	20Ω＜R≤200KΩ	File size:450.24 KB	Details
PRMT	Radial Type Cement Fixed Resistors-PRMT Series	15W	PRMT	±400PPM/℃	±5%、±10%	0.1Ω≤R≤20Ω	File size:450.24 KB	Details

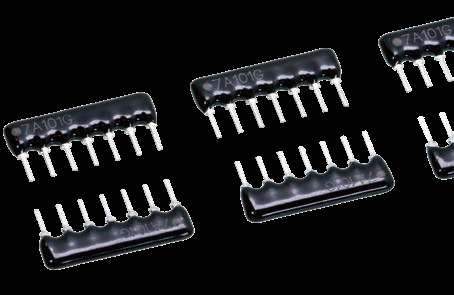

RPH	Resistor Network	0.3W	RPH	±250	±2% ±5%	10R≤R＜50Ω	File size:412.38 KB	Details
RPH	Resistor Network	0.3W	RPH	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:412.38 KB	Details
RPH	Resistor Network	1/2W	RPH	±250	±2% ±5%	10R≤R＜50Ω	File size:412.38 KB	Details
RPH	Resistor Network	1/2W	RPH	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:412.38 KB	Details
RPH	Resistor Network	0.3W	RPH	±250	±2% ±5%	10R≤R＜50Ω	File size:412.38 KB	Details
RPH	Resistor Network	0.3W	RPH	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:412.38 KB	Details
RNM	Resistor Network	1/4W	RNM	±250	±2% ±5%	10R≤R＜50Ω	File size:325.6 KB	Details
RNM	Resistor Network	1/4W	RNM	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:325.6 KB	Details
RNM	Resistor Network	0.4W	RNM	±250	±2% ±5%	10R≤R＜50Ω	File size:325.6 KB	Details
RNM	Resistor Network	0.4W	RNM	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:325.6 KB	Details
RNM	Resistor Network	1/4W	RNM	±250	±2% ±5%	10R≤R＜50Ω	File size:325.6 KB	Details
RNM	Resistor Network	1/4W	RNM	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:325.6 KB	Details
RPL	Resistor Network	1/5W	RPL	±250	±2% ±5%	10R≤R＜50Ω	File size:337.13 KB	Details
RPL	Resistor Network	1/5W	RPL	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:337.13 KB	Details
RPL	Resistor Network	0.3W	RPL	±250	±2% ±5%	10R≤R＜50Ω	File size:337.13 KB	Details
RPL	Resistor Network	0.3W	RPL	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:337.13 KB	Details
RPL	Resistor Network	1/5W	RPL	±250	±2% ±5%	10R≤R＜50Ω	File size:337.13 KB	Details
RPL	Resistor Network	1/5W	RPL	±100	±2% ±5%	50Ω≤R≤1MΩ	File size:337.13 KB	Details
RNL	Resistor Network	1/8W	RNL	±250	±2% ±5%	10Ω≤R＜50Ω	File size:392.37 KB	Details
RNL	Resistor Network	1/8W	RNL	±200	±2% ±5%	50Ω≤R≤1MΩ	File size:392.37 KB	Details
RNL	Resistor Network	1/5W	RNL	±250	±2% ±5%	10Ω≤R＜50Ω	File size:392.37 KB	Details
RNL	Resistor Network	1/5W	RNL	±200	±2% ±5%	50Ω≤R≤1MΩ	File size:392.37 KB	Details
TMOL	Terminal Type Metal Oxide Film Resistors	13W	TMOL		±5%	100KΩ≤R≤82KΩ	File size:361.96 KB	Details
TMOL	Terminal Type Metal Oxide Film Resistors	10W	TMOL		±5%	100KΩ≤R≤82KΩ	File size:361.96 KB	Details
TMOV	Terminal Type Metal Oxide Film Resistors	7W	TMOV		±5%	10Ω≤R≤10KΩ	File size:361.96 KB	Details
TMOV	Terminal Type Metal Oxide Film Resistors	5W	TMOV		±5%	10Ω≤R≤10KΩ	File size:361.96 KB	Details
TMOR	Terminal Type Metal Oxide Film Resistors	5W	TMOR		±5%	10Ω≤R≤43KΩ	File size:361.96 KB	Details
TMOR	Terminal Type Metal Oxide Film Resistors	3W	TMOR		±5%	10Ω≤R≤43KΩ	File size:361.96 KB	Details

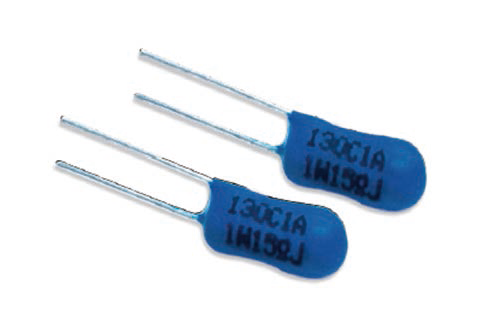

TFR	Thermal Fusing Wire-wound Fixed Resistors	1W	TFR		±5% ±10%	2.2Ω≤R≤4.7Ω	File size:373.54 KB	Details
Avisert(3)Type	Vertical Taping	1/4W,1/2WS	MOR		±2%、±5%、±10%	0.1Ω~560KΩ	File size:1.45 MB	Details
Avisert(3)Type	Vertical Taping	1/8W,1/4WS,1/4W,1/2WS,0.6WS	MF		±0.1%~±5%	1Ω~1MΩ	File size:1.45 MB	Details
Avisert(3)Type	Vertical Taping	1/8W,1/4WS	CFR		±2%、±5%、±10%	1Ω~1MΩ	File size:1.45 MB	Details
Avisert(2)Type	Vertical Taping	1/8W,1/4WS	MF		±0.1%~±5%	1Ω~1MΩ	File size:1.45 MB	Details
Avisert(2)Type	Vertical Taping	1/8W,1/4W	CFR		±2%、±5%、±10%	1Ω~1MΩ	File size:1.45 MB	Details
Avisert(1)Type	Vertical Taping	1/4W,1/2WS	MOR		±2%、±5%、±10%	0.1Ω~560KΩ	File size:1.45 MB	Details
Avisert(1)Type	Vertical Taping	1/4W,1/2WS,0.6WS	MF		±0.1%~±5%	1Ω~1MΩ	File size:1.45 MB	Details
Avisert(1)Type	Vertical Taping	1/2W	CPR		±2%、±5%、±10%	3Ω~10MΩ	File size:1.45 MB	Details
Avisert(1)Type	Vertical Taping	1/4W	CFR		±2%、±5%、±10%	1Ω~10MΩ	File size:1.45 MB	Details
Panasert-Type	Vertical Taping	1/4W,1/2W,1WS,2WS,3WS	KNP		±2%、±5%、±10%	0.01Ω~3.0KΩ	File size:1.45 MB	Details
Panasert-Type	Vertical Taping	1/4W,1WS,2WS,3WS	MOR		±2%、±5%、±10%	0.1Ω~560KΩ	File size:1.45 MB	Details
Panasert-Type	Vertical Taping	1/4W,1/2WS,1WS,2WS,3WS	MF		±0.1%~±5%	1Ω~1MΩ	File size:1.45 MB	Details
Panasert-Type	Vertical Taping	1/2W	CPR		±2%、±5%、±10%	3Ω~10MΩ	File size:1.45 MB	Details
Panasert-Type	Vertical Taping	1/4W,1/2W,1WS	CFR		±2%、±5%、±10%	1Ω~10MΩ	File size:1.45 MB	Details
WMO	Weld Semi-Finished Product	/	7×51	±350PPM/℃	±5%	50Ω≤R≤200KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	7×28	±350PPM/℃	±5%	20Ω≤R≤150KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	5×51	0~-700 PPM/℃	±5%	150KΩ＜R≤560KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	5×51	±350PPM/℃	±5%	0.1Ω≤R≤150KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	5×40	0~-700 PPM/℃	±5%	150KΩ＜R≤560KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	5×40	±350PPM/℃	±5%	0.1Ω≤R≤150KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	4×22	0~-700 PPM/℃	±5%	150KΩ＜R≤560KΩ	File size:356.74 KB	Details
WMO	Weld Semi-Finished Product	/	4×22	±350PPM/℃	±5%	0.1Ω≤R≤150KΩ	File size:356.74 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	9W	KNPA	±200	±1% ±2% ±5% ±10%	10Ω≤R≤15KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	8W	KNPA	±200	±1% ±2% ±5% ±10%	10Ω≤R≤10KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	7W	KNPA	±200	±1% ±2% ±5% ±10%	10Ω≤R≤8.2KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	5W	KNPA	±200	±1% ±2% ±5% ±10%	10Ω≤R≤5.6KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	3W	KNPA	±200	±1% ±2% ±5% ±10%	6.5Ω≤R≤3.9KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	2W	KNPA	±200	±1% ±2% ±5% ±10%	5Ω≤R≤3KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	1W	KNPA	±200	±1% ±2% ±5% ±10%	2.5Ω≤R≤1.2KΩ	File size:723.05 KB	Details
KNPA	Wire-Wound Anti-Surge Fixed Resistors	1/2W	KNPA	±200	±1% ±2% ±5% ±10%	1.5Ω≤R≤820Ω	File size:723.05 KB	Details
KNHA	Wire-Wound Fixed Resistors	30W	KNHA	±400	±2% ±5% ±10%	0.4Ω≤R＜20Ω	File size:326.04 KB	Details
KNHA	Wire-Wound Fixed Resistors	25W	KNHA	±400	±2% ±5% ±10%	0.4Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	100W	KNH	±400	±2% ±5% ±10%	3Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	80W	KNH	±400	±2% ±5% ±10%	3Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	60W	KNH	±400	±2% ±5% ±10%	3Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	50W	KNH	±400	±2% ±5% ±10%	3Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	40W	KNH	±400	±2% ±5% ±10%	0.6Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	30W	KNH	±400	±2% ±5% ±10%	0.5Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	25W	KNH	±400	±2% ±5% ±10%	0.4Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	20W	KNH	±400	±2% ±5% ±10%	0.4Ω≤R＜20Ω	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	30W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤10KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	25W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤10KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	100W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤50KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	80W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤40KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	60W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤30KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	50W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤25KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	40W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤20KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	30W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤15KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	25W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤10KΩ	File size:326.04 KB	Details
KNH	Wire-Wound Fixed Resistors	20W	KNH	±300	±2% ±5% ±10%	20Ω≤R≤10KΩ	File size:326.04 KB	Details
KNP	Wire-Wound Fixed Resistors	10W-S	KNP	±400	±1% ±2% ±5% ±10%	0.22Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	9W	KNP	±400	±1% ±2% ±5% ±10%	0.22Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	9W-S	KNP	±400	±1% ±2% ±5% ±10%	0.15Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	8W	KNP	±400	±1% ±2% ±5% ±10%	0.15Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	8W-S	KNP	±400	±1% ±2% ±5% ±10%	0.1Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	7W	KNP	±400	±1% ±2% ±5% ±10%	0.1Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	7W-S	KNP	±400	±1% ±2% ±5% ±10%	0.082Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	5W	KNP	±400	±1% ±2% ±5% ±10%	0.082Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	5W-S	KNP	±400	±1% ±2% ±5% ±10%	0.039Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	3W	KNP	±400	±1% ±2% ±5% ±10%	0.039Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	3W-S	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	2W	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	2W-S	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1W	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1W-S	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1/2W	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1/2W-S	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1/4W	KNP	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	10W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤15KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	9W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤15KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	9W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤12KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	8W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤12KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	8W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤8.2KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	7W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤8.2KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	7W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤5.6KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	5W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤5.6KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	5W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤3.9KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	3W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤3.9KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	3W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤3KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	2W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤3KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	2W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤1.2KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤1.2KΩ	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤390Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1/2W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤390Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1/2W-S	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤200Ω	File size:587.34 KB	Details
KNP	Wire-Wound Fixed Resistors	1/4W	KNP	±300	±1% ±2% ±5% ±10%	20Ω≤R≤200Ω	File size:587.34 KB	Details
KNS	Wire-Wound Fixed Resistors	10W	KNS	±400	±2% ±5% ±10%	0.3Ω≤R＜20Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	8W	KNS	±400	±2% ±5% ±10%	0.2Ω≤R＜20Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	7W	KNS	±400	±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	5W	KNS	±400	±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	3W	KNS	±400	±2% ±5% ±10%	0.068Ω≤R＜20Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	2W	KNS	±400	±2% ±5% ±10%	0.05Ω≤R＜20Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	10W	KNS	±300	±2% ±5% ±10%	20Ω≤R≤3.3KΩ	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	8W	KNS	±300	±2% ±5% ±10%	20Ω≤R≤2.2KΩ	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	7W	KNS	±300	±2% ±5% ±10%	20Ω≤R≤1.1KΩ	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	5W	KNS	±300	±2% ±5% ±10%	20Ω≤R≤750Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	3W	KNS	±300	±2% ±5% ±10%	20Ω≤R≤470Ω	File size:337.47 KB	Details
KNS	Wire-Wound Fixed Resistors	2W	KNS	±300	±2% ±5% ±10%	20Ω≤R≤470Ω	File size:337.47 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	10W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.13Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	10W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤820Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	9W	KNPI	±400	±1% ±2% ±5% ±10%	0.13Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	9W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤820Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	9W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.091Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	9W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤620Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	8W	KNPI	±400	±1% ±2% ±5% ±10%	0.091Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	8W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤620Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	8W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.047Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	8W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤430Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	7W	KNPI	±400	±1% ±2% ±5% ±10%	0.047Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	7W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤430Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	7W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.043Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	7W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤430Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	5W	KNPI	±400	±1% ±2% ±5% ±10%	0.043Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	5W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤430Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	5W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.024Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	5W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤150Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	3W	KNPI	±400	±1% ±2% ±5% ±10%	0.024Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	3W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤150Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	3W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.018Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	3W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤120Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	2W	KNPI	±400	±1% ±2% ±5% ±10%	0.018Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	2W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤120Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	2W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	2W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤62Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	1W	KNPI	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	1W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤62Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	1W-S	KNPI	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	1W-S	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤30Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	1/2W	KNPI	±400	±1% ±2% ±5% ±10%	0.01Ω≤R＜20Ω	File size:655.36 KB	Details
KNPI	Wire-Wound Non-Inductive Fixed Resistors	1/2W	KNPI	±300	±1% ±2% ±5% ±10%	20Ω≤R≤30Ω	File size:655.36 KB	Details
WPR	Wire-Wound Power Resistors	10W-SS	WPR	±200	±1%、±5%、±10%	1Ω≤R≤5KΩ	File size:668.87 KB	Details
WPR	Wire-Wound Power Resistors	4W	WPR	±200	±1%、±5%、±10%	0.1Ω≤R≤1.8KΩ	File size:668.87 KB	Details
WPR	Wire-Wound Power Resistors	3W	WPR	±200	±1%、±5%、±10%	0.1Ω≤R≤1KΩ	File size:668.87 KB	Details
WPR	Wire-Wound Power Resistors	2W	WPR	±200	±1%、±5%、±10%	0.1Ω≤R≤1KΩ	File size:668.87 KB	Details
WPR	Wire-Wound Power Resistors	1W	WPR	±200	±1%、±5%、±10%	0.1Ω≤R≤300Ω	File size:668.87 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	7×100	±400PPM/℃	±5%	20Ω＜R≤15KΩ	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	7×100	±300PPM/℃	±5%	0.01Ω≤R≤20Ω	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	7×51	±400PPM/℃	±5%	20Ω＜R≤8.2KΩ	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	7×51	±300PPM/℃	±5%	0.01Ω≤R≤20Ω	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	7×15	±400PPM/℃	±5%	20Ω＜R≤3.0KΩ	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	7×15	±300PPM/℃	±5%	0.01Ω≤R≤20Ω	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	3×12	±400PPM/℃	±5%	20Ω＜R≤390Ω	File size:329.5 KB	Details
WWR	Wire-Wound Semi-Finished Product	/	3×12	±300PPM/℃	±5%	0.01Ω≤R≤20Ω	File size:329.5 KB	Details
ZO	Zero-ohm Resistors	1/4W	ZOT			0Ω＜R≤10mΩ	File size:316.99 KB	Details
ZO	Zero-ohm Resistors	1/8W	ZOT			0Ω＜R≤10mΩ	File size:316.99 KB	Details
ZO	Zero-ohm Resistors	1/4W	ZOC			0Ω＜R≤40mΩ	File size:316.99 KB	Details
ZO	Zero-ohm Resistors	1/8W	ZOC			0Ω＜R≤40mΩ	File size:316.99 KB	Details
Special Network	立式加工型	0.125W	SN0004	±100PPM/℃	±2%、±5%	50Ω≤R≤1MΩ	File size:1.16 MB	Details
Special Network	立式加工型	0.125W	SN0004	±250PPM/℃	±2%、±5%	10Ω≤R＜50Ω	File size:1.16 MB	Details
Special Network	立式加工型	0.125W	SN0003	±100PPM/℃	±2%、±5%	50Ω≤R≤1MΩ	File size:1.16 MB	Details
Special Network	立式加工型	0.125W	SN0003	±250PPM/℃	±2%、±5%	10Ω≤R＜50Ω	File size:1.16 MB	Details
Special Network	立式加工型	0.2W	SN0002	±100PPM/℃	±2%、±5%	50Ω≤R≤1MΩ	File size:1.16 MB	Details
Special Network	立式加工型	0.2W	SN0002	±250PPM/℃	±2%、±5%	10Ω≤R＜50Ω	File size:1.16 MB	Details
Special Network	立式加工型	0.2W	SN0001	±250PPM/℃	±2%、±5%	10Ω≤R＜50Ω	File size:1.16 MB	Details

麻豆91精品国产91,日韩人体一区二区西西,色综合天天综合天天做,国产午夜精品免费福利,精品一区二区三区黑人,国产免费午夜福利播放,天堂亚洲国产av成人,亚洲午夜精品免费福利,91麻豆一级免费视频,日韩一区二区自拍偷拍

Products

Product Overview

Thick Film Chip Resistors

Thin Film Chip Resistors

Alloy Resistors

Through Hole Resisitors

Power Resisitors

Raw Material

Customized inductor

Thick Film Chip Resistors

Thin Film Chip Resistors

Alloy Resistors

Through Hole Resisitors

Power Resisitors

Raw Material

Customized inductor

Show 677 Series results

About us

Tech Center

Contact us

Kunshan Headquarters

Share
